‹ Home › Inventory › FXLRS 2024 Low Rider™ S

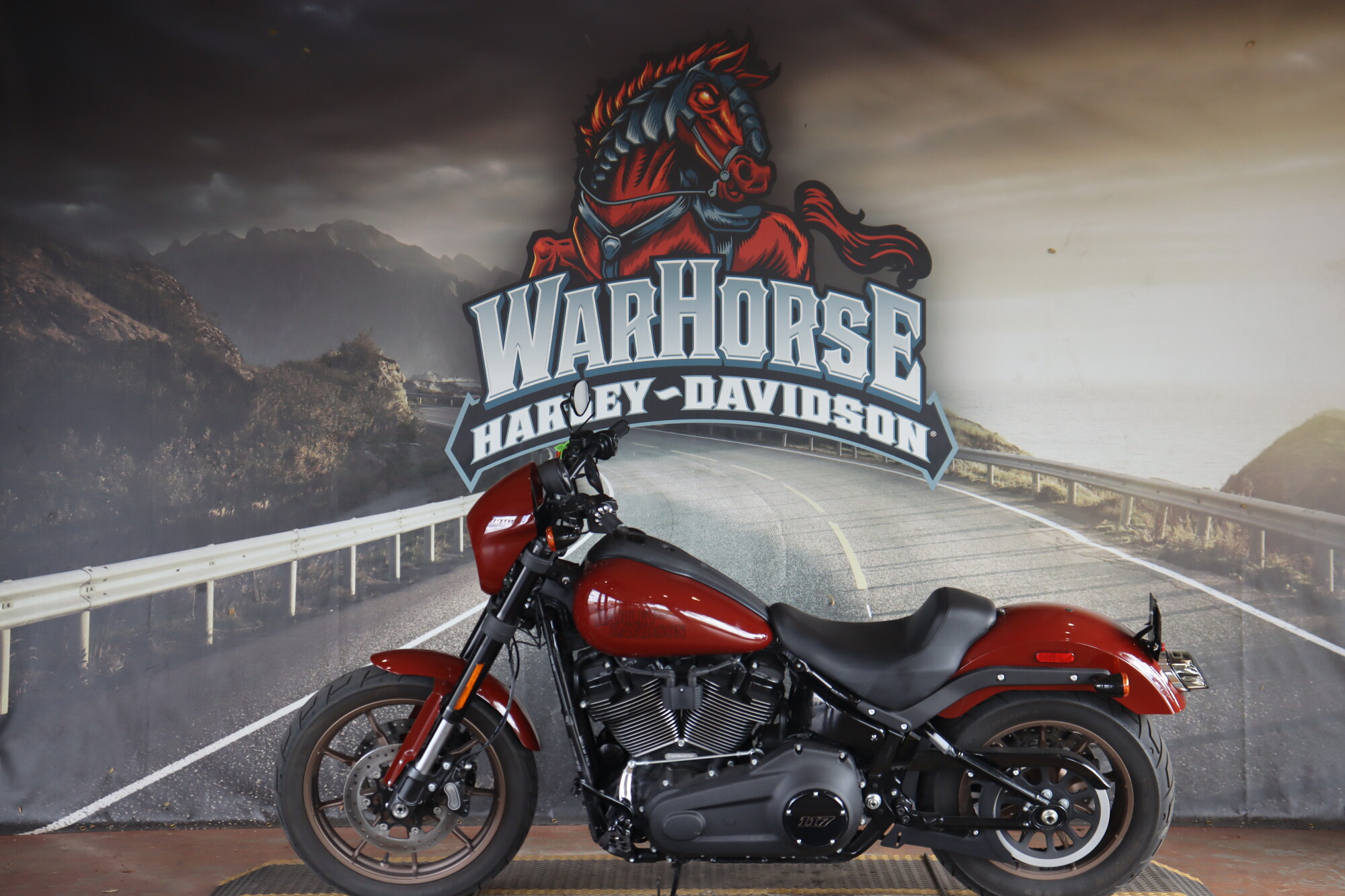

2024 Harley-Davidson® Low Rider® STHE BLACK SHEEP OF THE BLACKTOP. Features may include: MILWAUKEE-EIGHT® 117 ENGINE High-performance engine with oil and air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson powertrain. ELECTRONIC CRUISE CONTROL Your Low Rider S will save you from speeding so you can enjoy the view and embrace true riding bliss. SPEEDOMETER Tucked behind the front fairing is a handlebar-mounted digital speedometer that is easy to view on the roll. HANDLEBARS Moto handlebar mounted on risers puts the rider in an aggressive posture on the bike. TANK STYLING The tank features an FXLRS badge cover and a dropped “H” logo| first seen on early H-D race bikes.

Specifications

Dimensions

add remove
- Length:

  93.1 in
- Seat height, unladen:

  28.0 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  650 lbs
- Weight, in running order:

  679 lb
- Tire, type:

  Michelin® Scorcher® "31" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  TAB Performance Softail Compatible Long Tip Exhaust Pipes
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  124.6 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  103 HP / 77 kW @ 4750 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
- CO₂ emissions testing method:

  –
- CO₂ emissions :

  –
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, optional style type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals
- Gauges:

  4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
