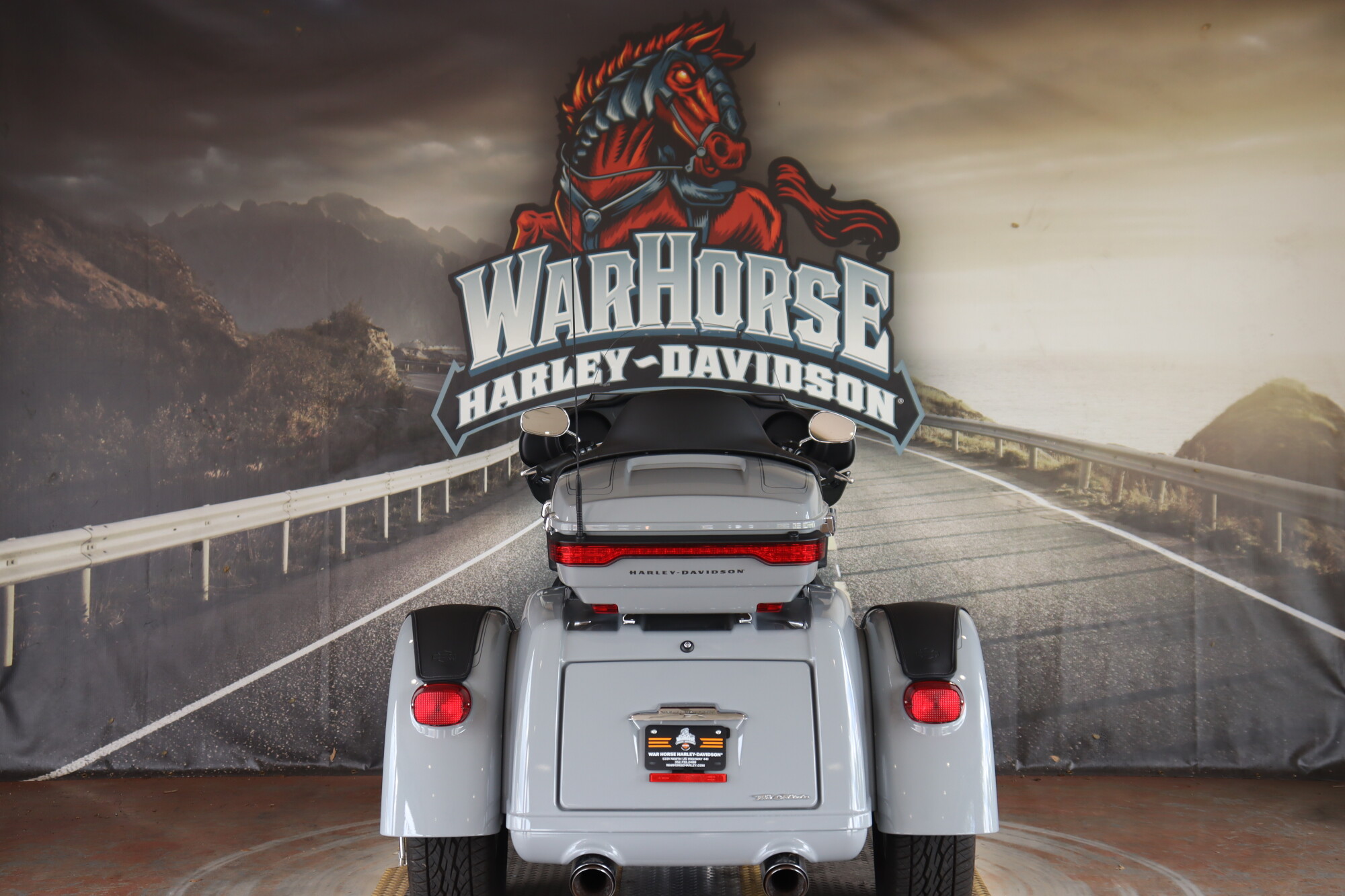

2024 Harley-Davidson® Tri Glide® UltraFULLY LOADED AND UNINHIBITED. Features may include: MILWAUKEE-EIGHT® 114 ENGINE Loads of torque for on-demand power you can feel with each twist of the throttle| accompanied by that evocative H-D sound. SIX-SPEED CRUISE DRIVE TRANSMISSION Provides smooth| quiet shifting and reduces engine speed on the highway| so you get a better match between engine RPM and road speed. BATWING FAIRING A pressure-equalizing duct on the batwing front fairing is designed to deliver smooth airflow and reduce head buffeting. BOOM!™ BOX GTS INFOTAINMENT SYSTEM An evolved interface experience that offers a contemporary look| feel| and function| with exceptional durability and features designed specifically for motorcycling. TRUNK AND KING TOUR-PAK® STORAGE Integrated trunk offers 4.4 cubic feet of storage capacity| while the injection-molded Tour-Pak luggage carrier adds an additional 2.4 cubic feet of storage capacity. RIDER SAFETY ENHANCEMENTS Increase road confidence with Trike-specific Rider Safety Enhancements| including Cornering Enhanced Electronic Linked Braking (C-ELB)| Cornering Enhanced Antilock Braking System (C-ABS)| Cornering Enhanced Traction Control System (C-TCS)| and Drag-Torque Slip Control System (DSCS).

Specifications

Dimensions

add remove
- Length:

  105.1 in
- Seat height, unladen:

  28.9 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  26
- Trail:

  3.9 in
- Wheelbase:

  65.7 in
- Tires, front specifications:

  MT90B16 72H
- Tires, rear specifications:

  P205/65R15 92T
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,199 lbs
- Weight, in running order:

  1237 lb
- Luggage capacity – volume:

  6.8 cu ft (0.19 m³)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  2500
- Horsepower:

  93 HP / 69 kW @ 5020 rpm
- Lean angle, right (deg.):

  N/A
- Lean angle, left (deg.):

  N/A
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  42 mpg (5.6 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  158 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Front fork:

  49mm dual bending valve
- Rear shocks:

  Hand-adjustable emulsion rear suspension
- Wheels, front type:

  Black, 7-spoke Cast Aluminum
- Wheels, rear type:

  Black, 7-spoke Cast Aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Electric

add remove
- Lights (as per country regulation), indicator:

  LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights; LED tail/stop, front signal lights and rear turn signals
- Gauges:

  Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch
- Headset specifications (if equipped):

  16 - 64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (Passenger Headset Sold Separately)
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
