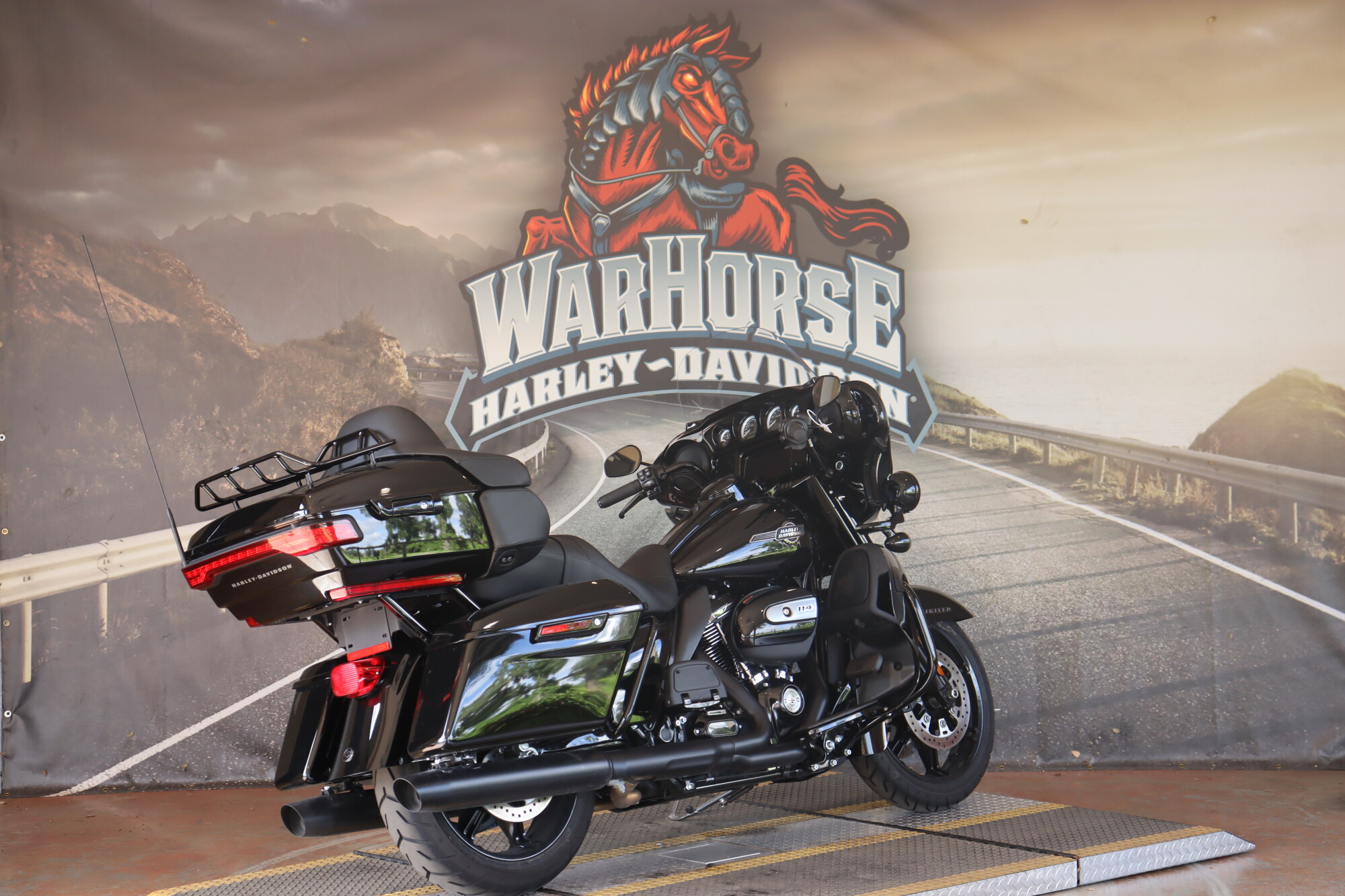

2024 Harley-Davidson® Ultra Limited®PARADISE FOUND. Features may include: MILWAUKEE-EIGHT® 114 ENGINE Loads of torque for on-demand power you can feel with each twist of the throttle| accompanied by that evocative H-D sound. ELECTRONIC CRUISE CONTROL Set your own speed on the six-speed Cruise Drive® transmission| which provides smooth| quiet shifting and adapts to whatever terrain you’re riding. VENTED BATWING FAIRING The boldly styled| vented batwing fairing delivers smooth air flow and reduces head buffeting. REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS Assists the rider in maintaining control and prevents the tires from locking under hard braking. PREMIUM TOUR-PAK® LUGGAGE CARRIER Sleek-yet-spacious Tour-Pak carrier with luggage rack houses both rider and passenger helmets as well as extra travel essentials.

Specifications

Dimensions

add remove
- Length:

  102.4 in
- Seat height, unladen:

  29.1 in
- Ground clearance:

  5.3 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  BW 130/70B18 63H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  880 lbs
- Weight, in running order:

  917 lb
- Luggage capacity – volume:

  4.7 cu ft (0.132 m³)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight™ 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.0 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  93 HP / 69 kW @ 5020 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  43 mpg
- Fuel economy:

  6.3 l/100 km (37 mpg)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  146 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Front fork:

  49mm Dual Bending Valve
- Rear shocks:

  Premium standard height hand-adjustable rear suspension
- Wheels, front type:

  Gloss Black Slicer II
- Wheels, rear type:

  Gloss Black Slicer II
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Text-to-Speech (TTS) languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
