‹ Home › Inventory › FLTRXSTSE 2026 CVO Road Glide ST

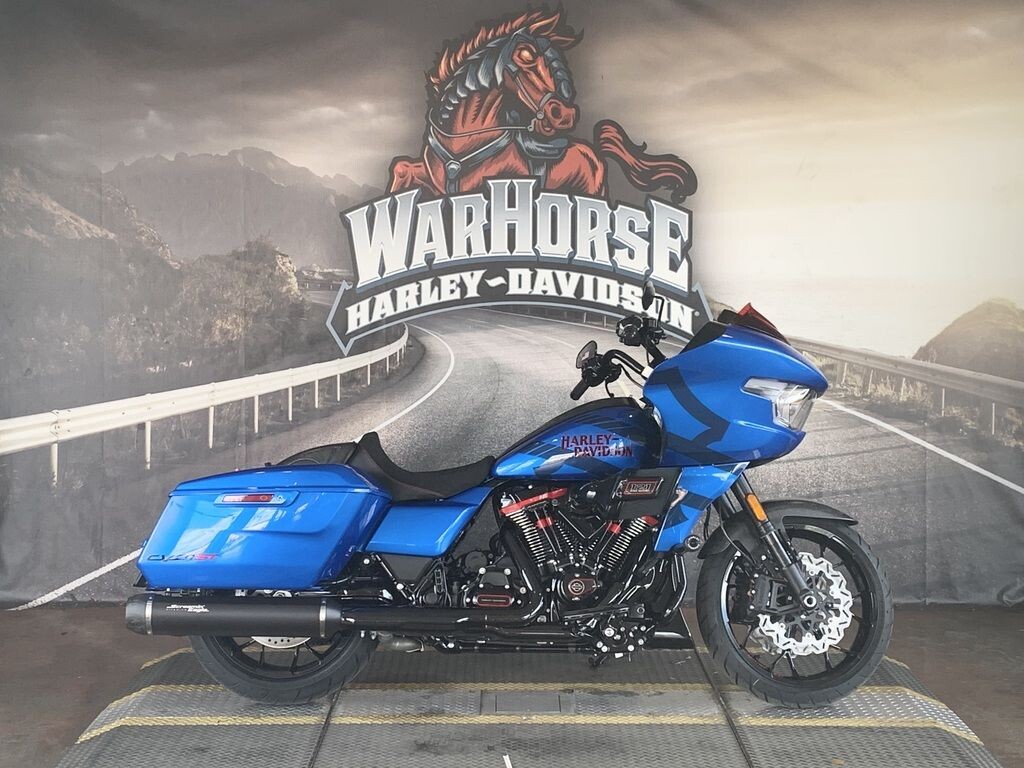

NEW 2026 CVO ROAD GLIDE ST IN ELECTRIC COAST! INCUDES RED TINTED WINDSHIELD, CARBON FIBER FENDER, CENTER CONSOLE, SEAT COWL, AND EXHAUST TIPS! ALSO FEATURES THE REMOTE RESERVOIR SUSPENSION! CALL TODAY TO SCHEDULE YOUR DEMO VISIT!

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Seat height, unladen:

  28.3 in
- Rake (steering head):

  26
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Weight, in running order:

  838 lb
- Luggage capacity – volume:

  2.42 cu ft (0.069 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 121 High Output
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  145.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  127 HP / 95 kW @ 4900 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  44 mpg (5.3 l/100 km)
Powertrain

add remove
- Primary drive:

  Belt, 30/68 ratio
- Gear ratios (overall) 1st:

  10.233
- Gear ratios (overall) 2nd:

  7.093
- Gear ratios (overall) 3rd:

  5.268
- Gear ratios (overall) 4th:

  4.266
- Gear ratios (overall) 5th:

  3.635
- Gear Ratios (overall) 6th:

  3.067
Chassis

add remove
- Front fork:

  1.9 in Inverted 1x1 Front Forks with adjustable preload, compression damping and rebound damping
- Rear shocks:

  Emulsion suspension with adjustable preload, compression damping and rebound damping
- Wheels, front type:

  Black, 7-spoke Cast Aluminum
- Wheels, rear type:

  Black, 7-spoke Cast Aluminum
- Brakes, type:

  Wave Style, dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  4-piston fixed dual radial mounted front, and single axial mounted rear
Infotainment

add remove
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  2
- Speaker size:

  Two 6.5 in fairing speakers
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
- Text-to-Speech (TTS) languages:

  Same as Languages list
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
- Bluetooth:

  Phone/Media Player, Headset
